Directories:

dsp56001

..

data_sheets

Files:	Size(Bytes)

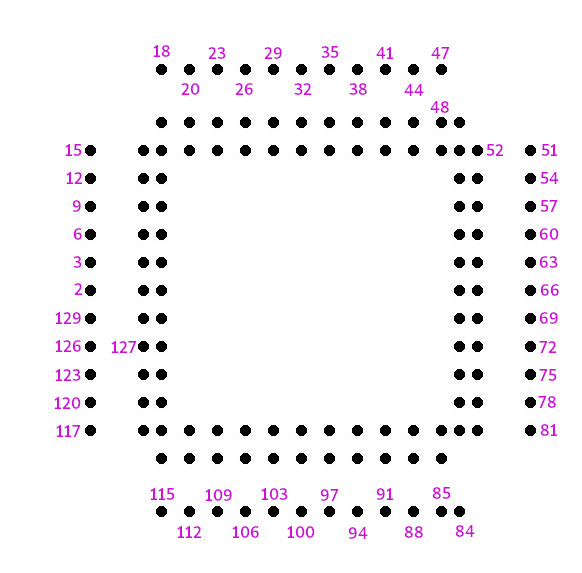

dsp56001_overlay2.jpg	55045

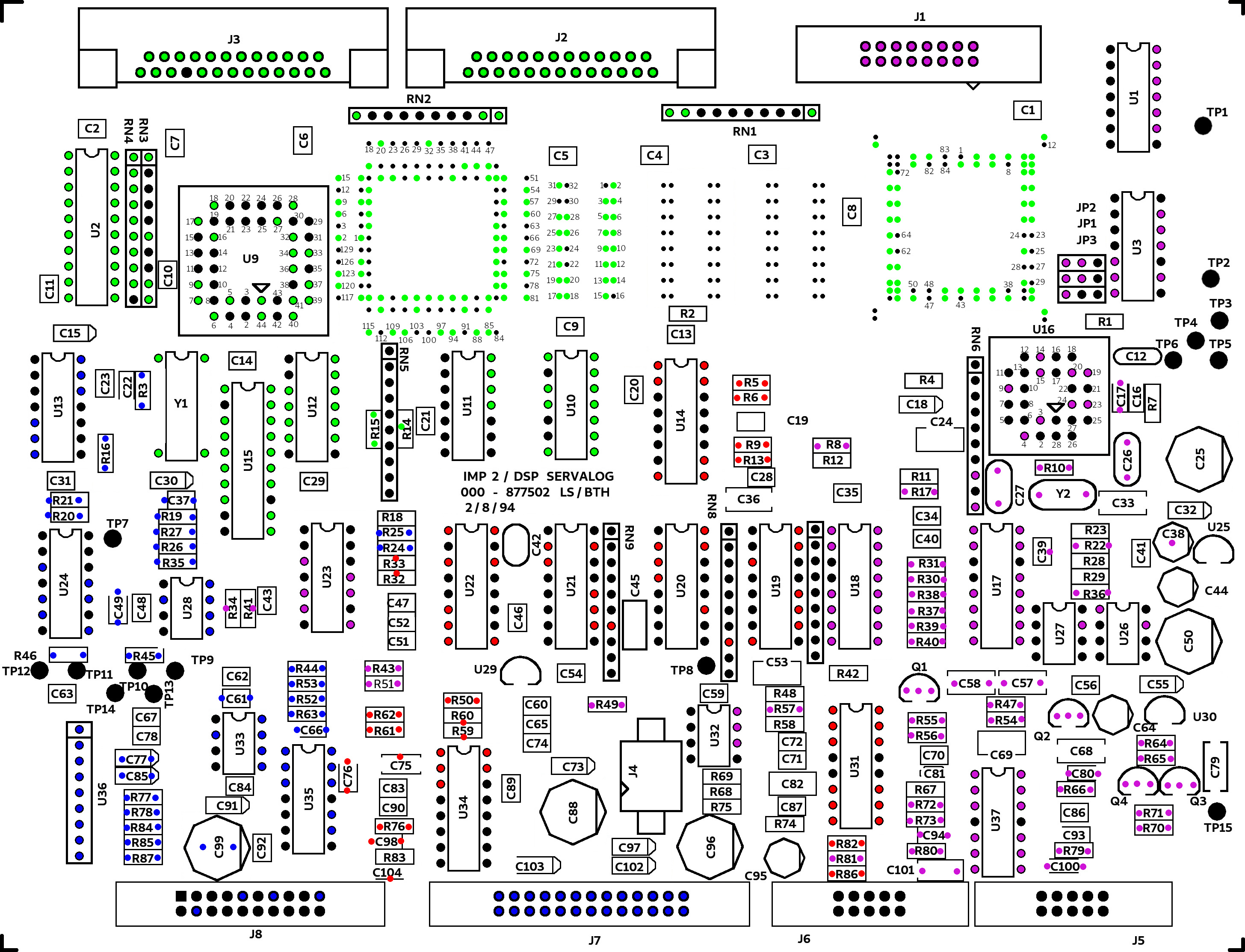

dsp_board_overlay2_back_new_colour2.jpg	1518679

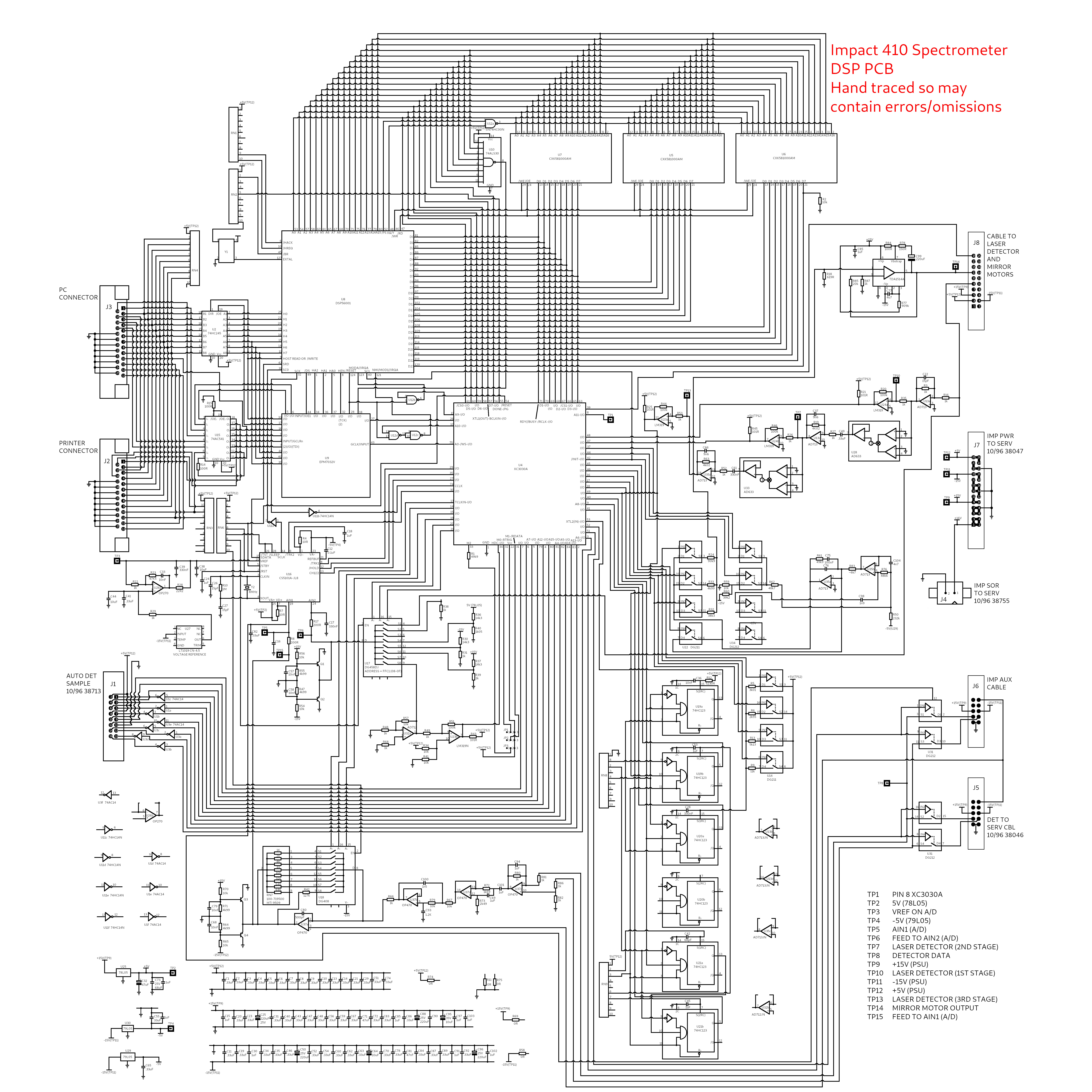

dsp_board_circuit_diagram102.jpg	3708472

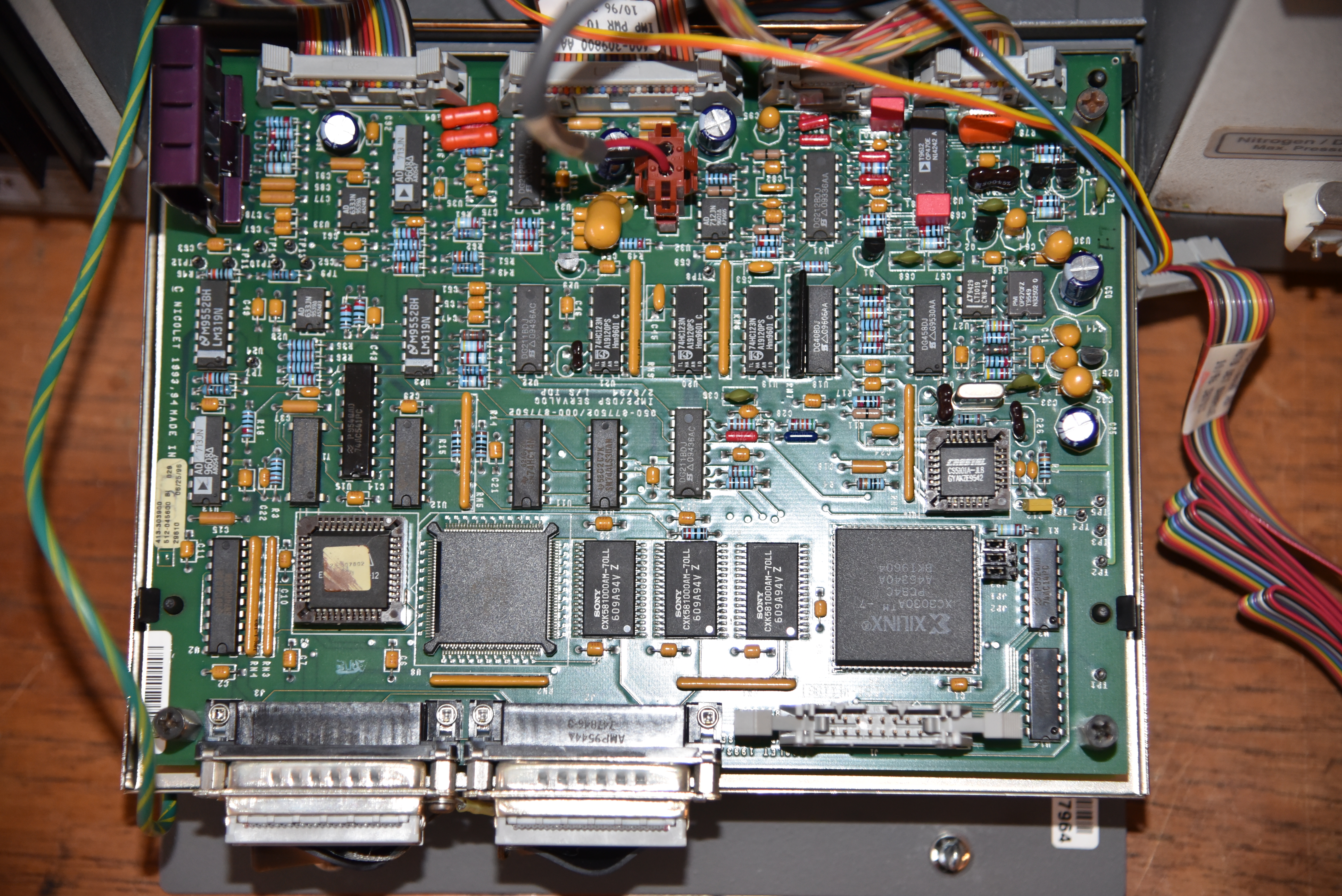

DSC_0303.JPG	9920402

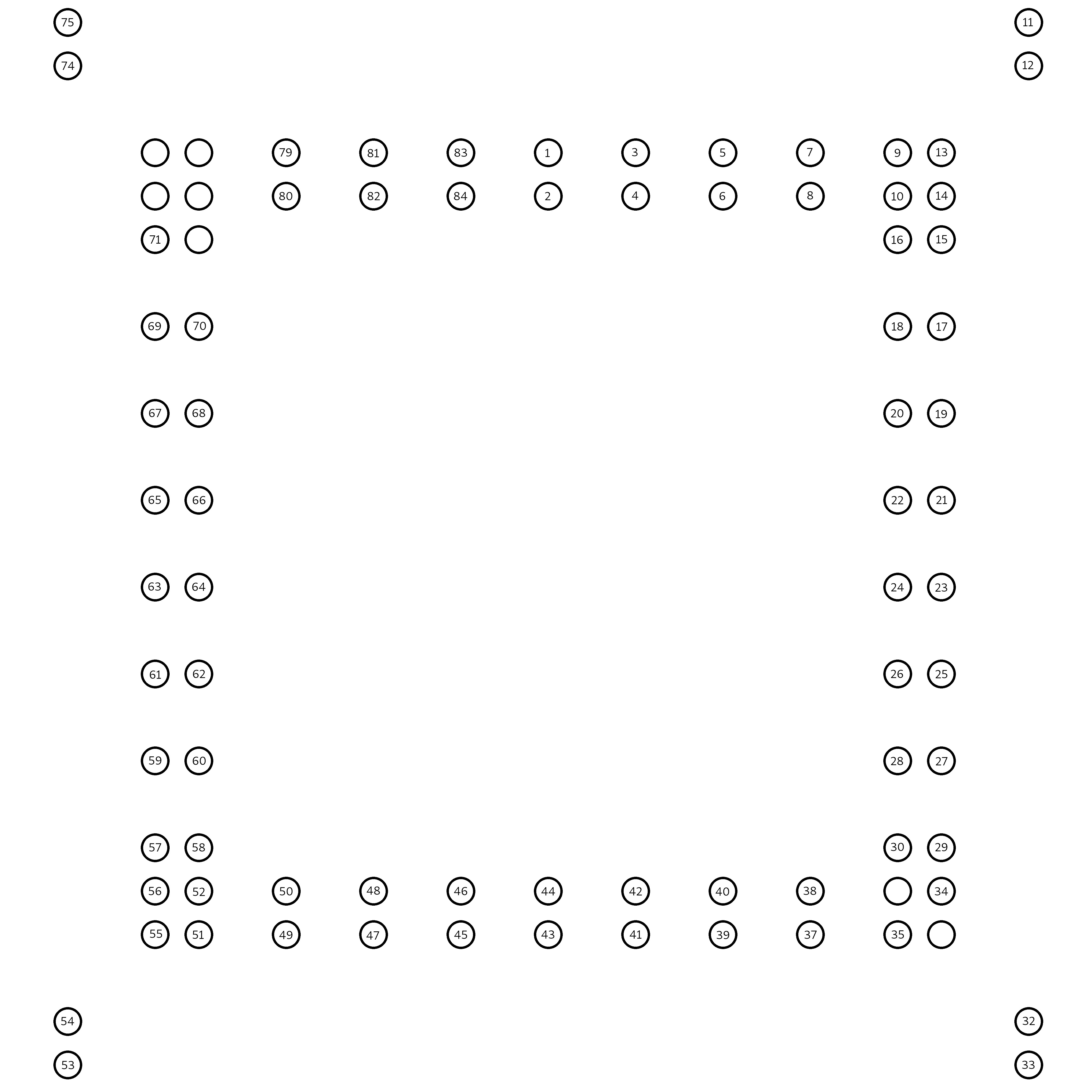

xc3030_overlay3.jpg	632634

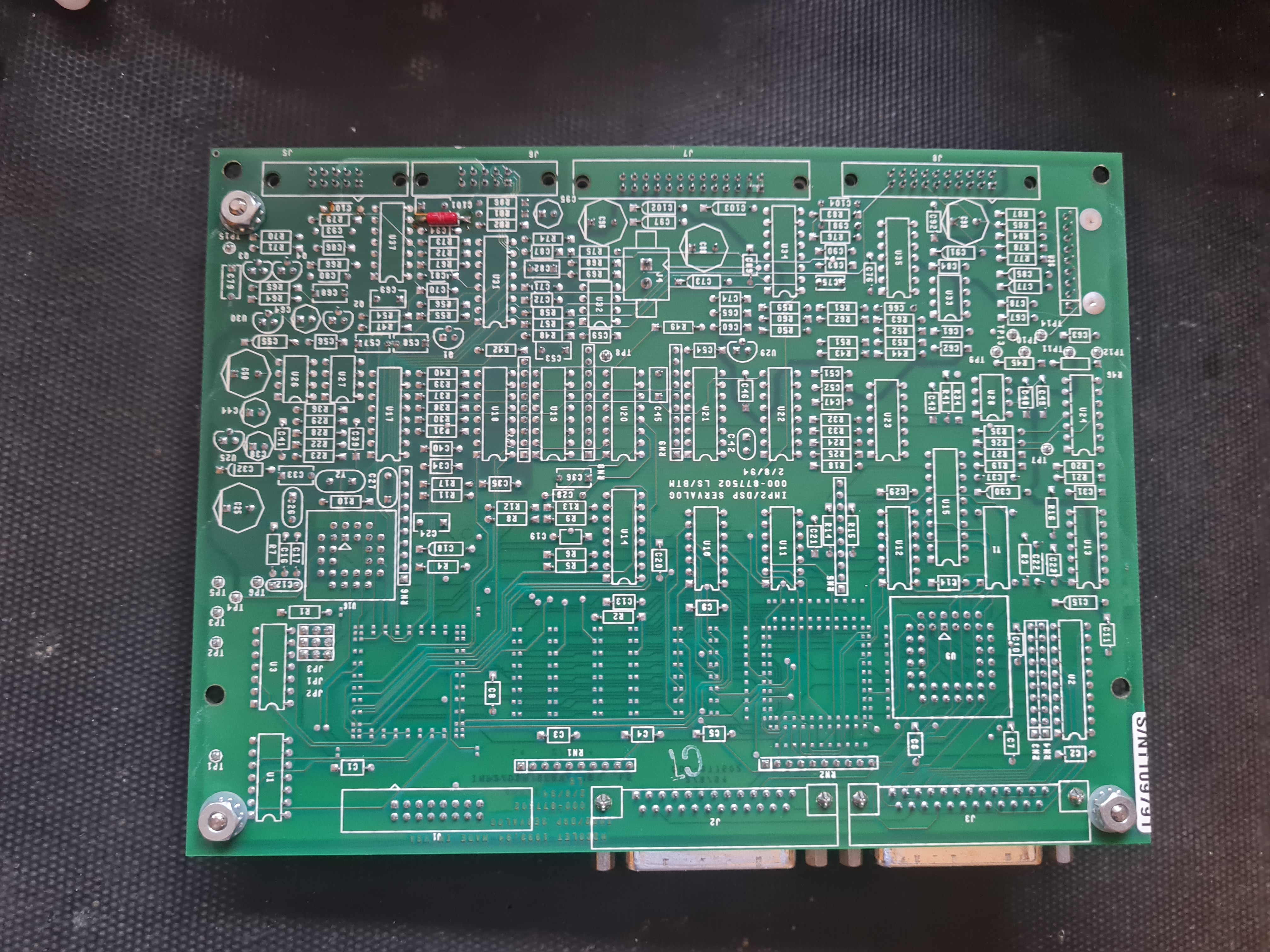

2021-12-31_10-05-18.jpg	2959848

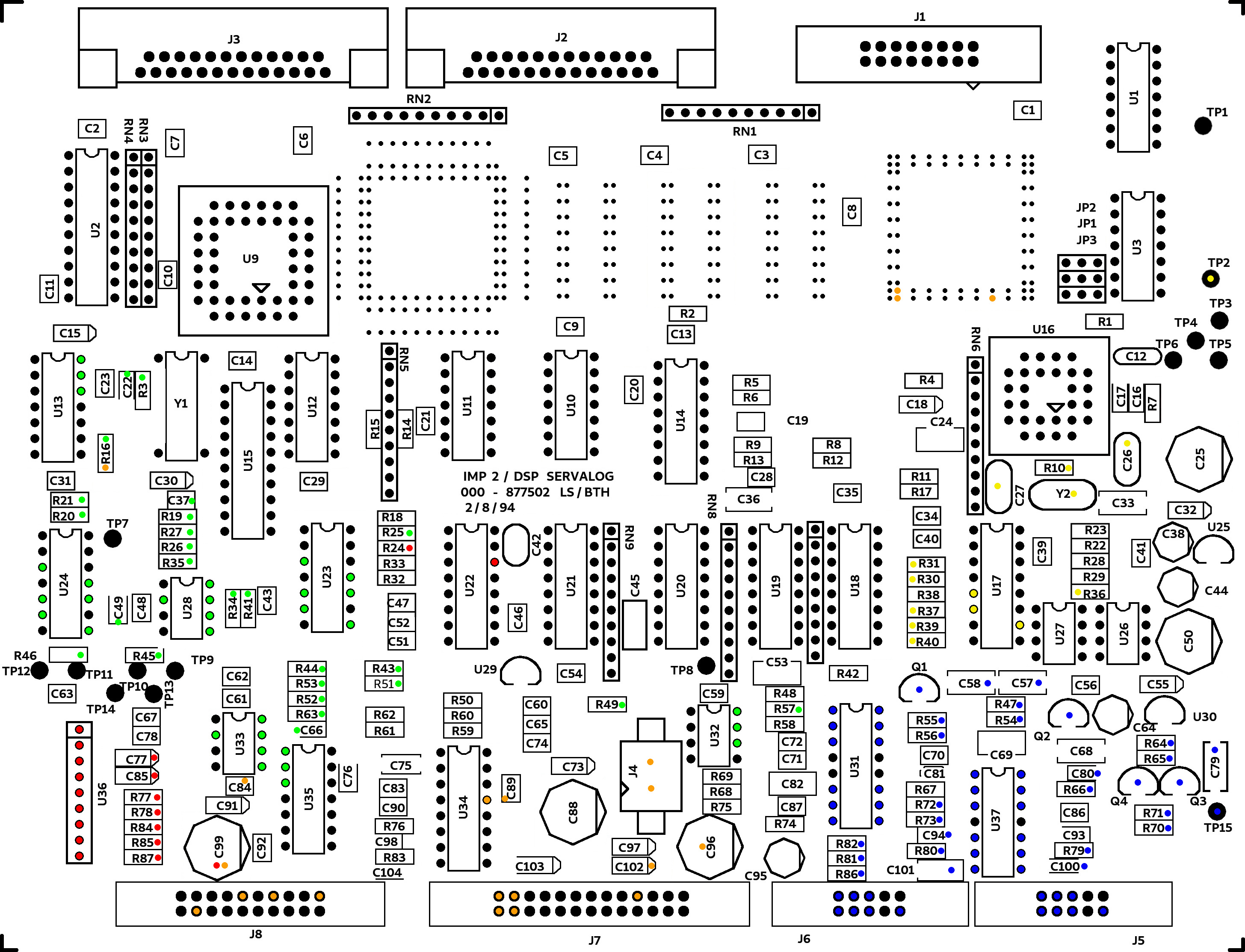

dsp_board_overlay2_back.jpg	1213998

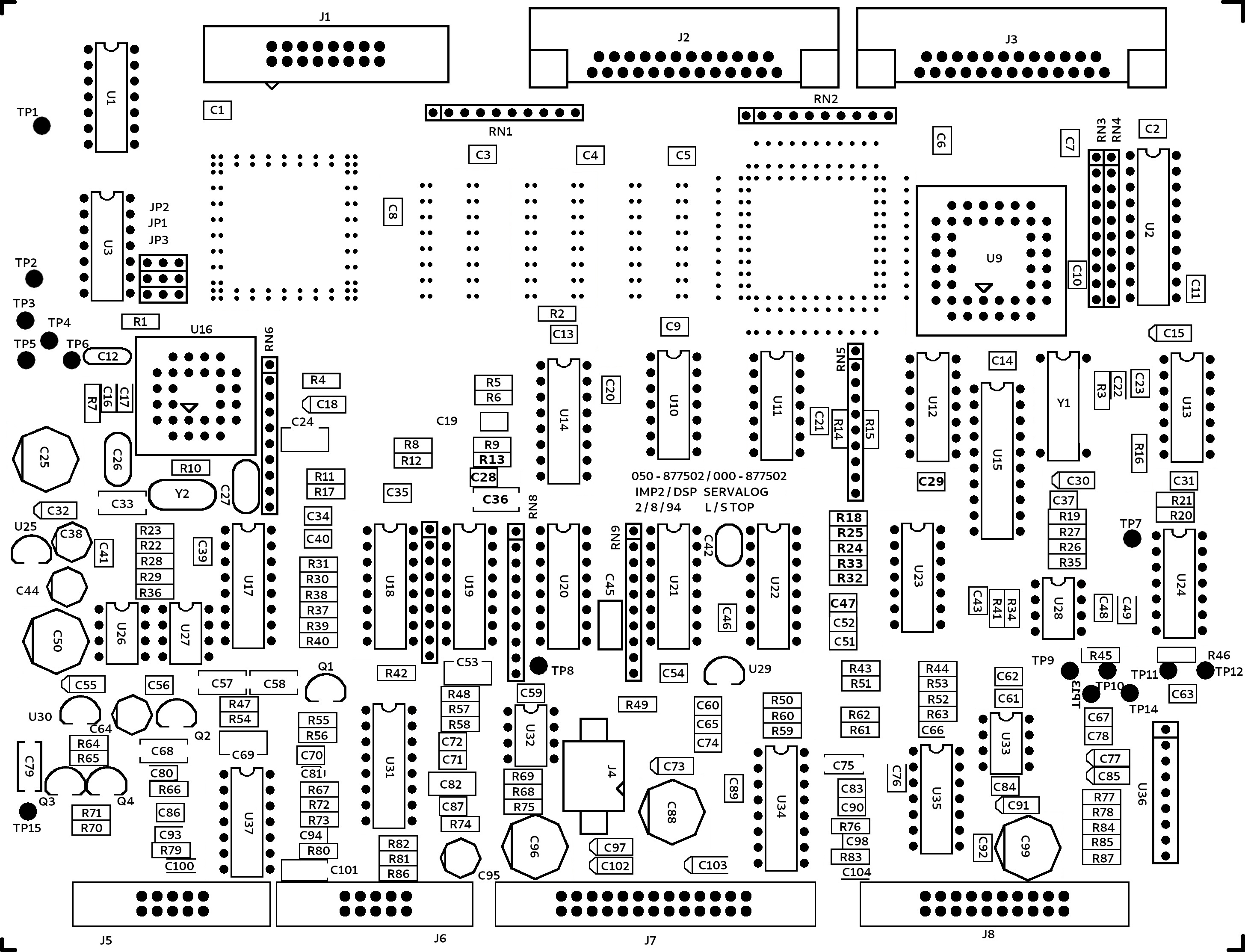

dsp_board_overlay2_front6.jpg	1114750

If you want to add to this resource or have any queries you can contact me at the email address: trev.g7pvs at ntlworld.com
